DY-1型油浸式电动滚筒
|
滚筒直径D
Drum dia.D |
功率P
Power P |
宽带B
Belt width B |
滚筒表面线速度V（m/s)
Velocity of drum surface V(m/s) |
质量M
Mass M |
|||||
|
mm |
kw |
mm |
0.63 |
0.8 |
1.0 |
1.25 |
1.6 |
2.0 |
kg |
|
Φ250 |
1.1 |
400 |
○ |
○ |
○ |
○ |
○ |
○ |
70 |
|
500 |
○ |
○ |
○ |
○ |
○ |
○ |
76 |
||
|
650 |
○ |
○ |
○ |
○ |
○ |
○ |
86 |
||
|
1.5 |
400 |
○ |
○ |
○ |
○ |
○ |
○ |
75 |
|
|
500 |
○ |
○ |
○ |
○ |
○ |
○ |
81 |
||
|
650 |
○ |
○ |
○ |
○ |
○ |
○ |
91 |
||
|
2.2 |
400 |
○ |
○ |
○ |
○ |
○ |
○ |
75 |
|
|
500 |
○ |
○ |
○ |
○ |
○ |
○ |
81 |
||
|
650 |
○ |
○ |
○ |
○ |
○ |
○ |
91 |
||
|
3 |
500 |
○ |
○ |
○ |
○ |
○ |
○ |
81 |
|
|
650 |
○ |
○ |
○ |
○ |
○ |
○ |
91 |
||
|
Φ320 |
1.5 |
500 |
|
○ |
○ |
○ |
○ |
○ |
130 |
|
650 |
|
○ |
○ |
○ |
○ |
○ |
141 |
||
|
2.2 |
500 |
|
○ |
○ |
○ |
○ |
○ |
130 |
|
|
650 |
|
○ |
○ |
○ |
○ |
○ |
141 |
||
|
3 |
500 |
|
○ |
○ |
○ |
○ |
○ |
132 |
|
|
650 |
|
|
○ |
○ |
○ |
○ |
144 |
||
|
4 |
500 |
|
|
○ |
○ |
○ |
○ |
148 |
|
|
650 |
|
|
○ |
○ |
○ |
○ |
158 |
||
|
5.5 |
500 |
|
|
|
|
○ |
○ |
153 |
|
|
650 |
|
○ |
○ |
○ |
○ |
○ |
163 |
||
|
Φ400 |
3 |
500 |
|
○ |
○ |
○ |
○ |
○ |
152 |
|
650 |
|
○ |
○ |
○ |
○ |
○ |
170 |
||
|
4 |
500 |
|
○ |
○ |
○ |
○ |
○ |
166 |
|
|
650 |
|
○ |
○ |
○ |
○ |
○ |
183 |
||
|
5.5 |
500 |
|
|
|
○ |
○ |
○ |
171 |
|
|
650 |
|
○ |
○ |
○ |
○ |
○ |
188 |
||
|
7.5 |
650 |
|
|
|
○ |
○ |
○ |
190 |
|

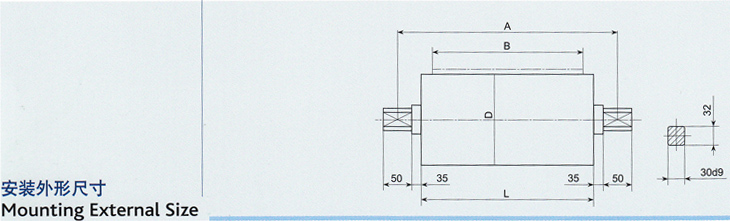

DY1型油浸式电动滚筒安装外形尺寸图
DY1型油浸式电动滚筒安装外形尺寸表
Mounting External Size
|
D |
B |
L |
A |
|
Φ250
|
400 |
460 |
580 |
|
500 |
560 |
680 |
|
|
650 |
730 |
850 |
|
|
Φ320
|
500 |
560 |
680 |
|
650 |
730 |
850 |
|
|
φ400
|
500 |
560 |
680 |
|
600 |
730 |
850 |

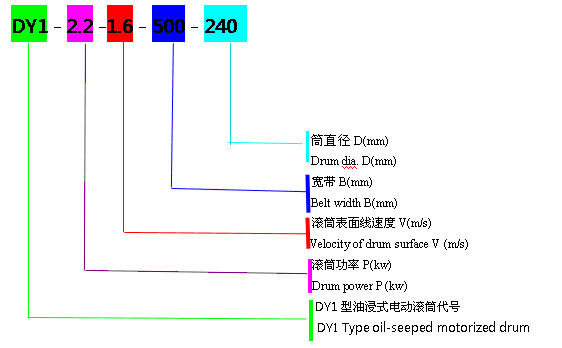

DY1型油浸式电动滚筒订货代号
Order Symbol
