YD型油浸式电动滚筒
|
滚筒直径D
Drum dia.D |
功率P
Power P |
滚筒表面线速度V（m/s)
Velocity drum surface V(m/s) |
极限***小筒长 |
系列***小筒长Lmin |
50mm质量
50mm Mass |
|
|
mm |
kw |
M/s |
mm |
长度mm |
质量mm |
kg |
|
Φ110 |
0.12（单相） |
0.14,0.16,0.20,0.25,0.57,0.63,0.80 |
310 |
350 |
12 |
0.8 |
|
0.25
|
0.04,0.047,0.05,0.055,0.065,0.07,0.075,0.08,0.09,0.10,0.12,0.152,0.20 |
350 |
350 |
16 |
1.1 |
|
|
0.25,0.30,0.32,0.34,0.38,0.44,0.53 |
320 |
|||||
|
Φ130 |
0.25 |
0.046,0.056,0.065,0.07,0.08,0.10,0.13,0.15,0.18,0.226 |
350 |
350 |
17 |
1.5 |
|
0.29,0.35,0.40,0.45,0.52,0.63 |
320 |
|||||
|
0.55 |
0.046,0.056,0.058,0.068,0.071,0.08,0.09,0.10,0.12,0.14,0.15,0.18,0.226 |
400 |
400 |
19 |
1.5 |
|
|
0.29,0.35,0.40,0.45,0.52,0.63 |
370 |
|||||
|
Φ174 |
0.75 |
0.03,0.04,0.05,0.063,0.08,0.10,0.13,0.16,0.20 扭矩250NM |
470 |
500 |
50 |
1.8 |
|
0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00 |
400 |
400 |
40 |
|||
|
Φ216 |
0.75 |
0.05,0.063,0.08,0.10,0.13,0.16,0.20,0.25 扭矩250NM |
470 |
500 |
70 |
2.5 |
|
0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
400 |
400 |
60 |
|||
|
1.1 |
0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
410 |
450 |
63 |
||
|
1.5/2.2 |
0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
460 |
500 |
69 |
||
|
3 |
0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
510 |
550 |
73 |
||
|
Φ240 |
0.75 |
0.056,0.07,0.089,0.11,0.14,0.18,0.22,0.28,0.36 扭矩250NM |
470 |
500 |
80 |
2.8 |
|
0.44,0.56，0.07,0.089,1.11,1.39,1.78,2.22,2.78 |
400 |
400 |
70 |
|||
|
1.1 |
0.14,0.18,0.2,0.25,0.4,0.5,0.56,0.63,0.8,1.0,1.25,1.6,2.0,2.5 |
410 |
450 |
70 |
||
|
1.5/2.2 |
0.14,0.18,0.2,0.25,0.4,0.5,0.56,0.63,0.8,1.0,1.25,1.6,2.0,2.5 |
460 |
500 |
78 |
||
|
3 |
0.14,0.18,0.2,0.25,0.4,0.5,0.56,0.63,0.8,1.0,1.25,1.6,2.0,2.5 |
510 |
550 |
81 |
||
|
Φ320 |
1.1 |
0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
420 |
450 |
120 |
3.2 |
|
1.5/2.2 |
0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
470 |
500 |
126 |
||
|
3 |
0.13,0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
520 |
550 |
132 |
||
|
4 |
0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15 |
560 |
600 |
150 |
||
|
5.5 |
0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15 |
560 |
600 |
155 |
||
|
7.5 |
0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15 |
660 |
700 |
160 |
||
|
Φ400 |
1.1 |
0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
420 |
450 |
140 |
5.0 |
|
1.5/2.2 |
0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
470 |
500 |
145 |
||
|
3 |
0.16,0.20,0.25,0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50 |
520 |
550 |
152 |
||
|
4 |
0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15,4.00 |
560 |
600 |
170 |
||
|
5.5 |
0.32,0.40,0.50,0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15,4.00 |
560 |
600 |
175 |
||
|
7.5 |
0.63,0.80,1.00,1.25,1.60,2.00,2.50,3.15,4.00 |
660 |
700 |
190 |
||

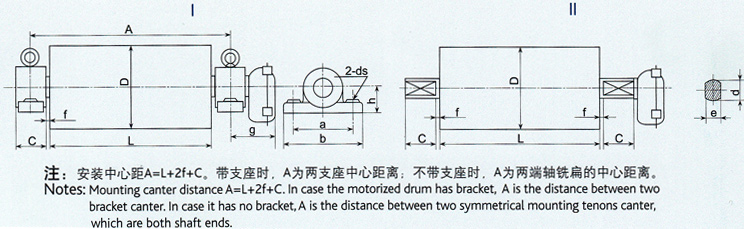

ＹＤ型油浸式电动滚筒安装外形尺寸图
ＹＤ型油浸式电动滚筒安装外形尺寸表
Mounting External Size
注：安装中心距A=L+2f+C。带支座时，A为两支座中心距离；不带支座时，A为两端轴铣扁的中心距离。
Notes: Mounting canter distance A=L+2f+C. In case the motorized drum has bracket, A is the distance between two bracket center. In case it has no bracket, A is the distance between two symmetrical mounting tenons center.
|
D |
a |
b |
c |
d |
e |
f |
g |
h |
ds |
|
Φ110 |
- |
- |
20 |
25 |
21 |
5 |
- |
- |
- |
|
Φ130 |
- |
- |
20 |
25 |
21 |
5 |
- |
- |
- |
|
Φ174 |
120 |
160 |
60 |
32 |
25 |
5 |
125 |
50 |
15 |
|
Φ216 |
120 |
160 |
60 |
38 |
30 |
5 |
125 |
50 |
15 |
|
Φ240 |
120 |
160 |
60 |
38 |
30 |
5 |
125 |
50 |
15 |
|
Φ320 |
210 |
260 |
60 |
42 |
35 |
10 |
125 |
95 |
19 |
|
Φ400 |
210 |
260 |
60 |
42 |
35 |
10 |
125 |
95 |
19 |
注：0.75kw的Φ216、Φ240滚筒的安装尺寸与Φ174滚筒的安装尺寸相同。
Notes: The mounting size of the motorized drum which power is 0.75kw, drum diameter is 216mm or 240mm
Is the same as the mounting size of the motorized drum which drum diameter is 174 mm

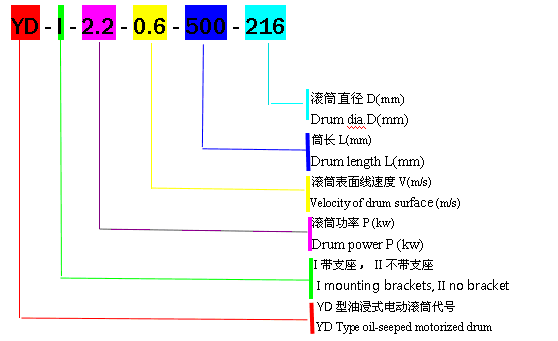

YD型油浸式电动滚筒订货代号
Order Symbol
